1 Series Solid Aluminum Bar

Brand: 1060、1070、1050、1100
Features: It can be strengthened by heat treatment, has medium plasticity in annealing, just quenching and hot state, has good spot welding properties, and has a tendency to form intergranular cracks when using gas welding and argon arc welding, etc.

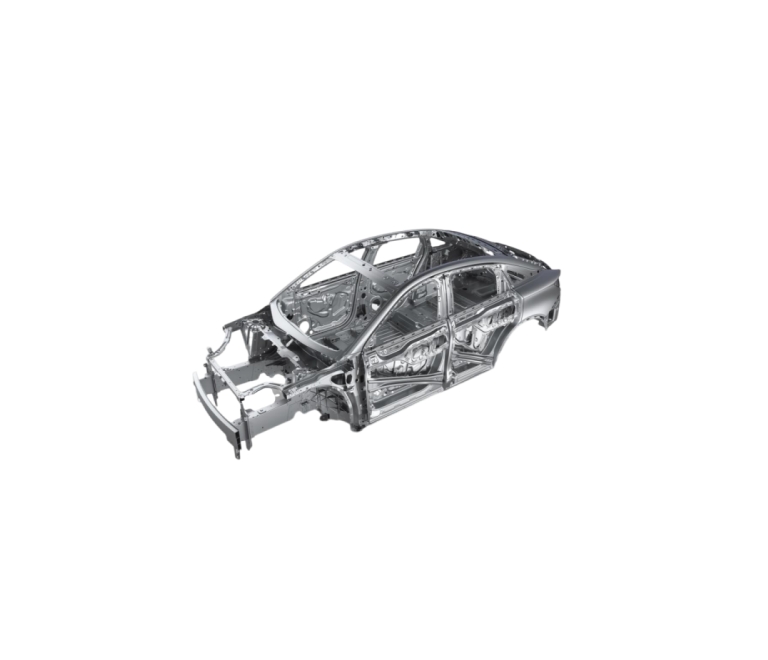

Applications: aircraft structures (skin, frame, rib beam, bulkhead, etc.), aircraft, ships, transportation, rivets, missile components, truck wheels, propeller components, etc.

Special services: nationwide sales, free samples, free door-to-door delivery, customizable with drawings and samples

Fields marked with * must be filled in. Please fill in your commonly used email address or WhatsApp phone number for us to contact you. We value privacy and will not disclose any of your information to any third party.

Product Details

Aluminum Chemical Composition
Grades	Cu	Si	Fe	Mn	Mg	Zn	Cr	Ti	Pb+Bi	Al
1050	≤0.05	≤0.25	≤0.4	≤0.05	≤0.05	≤0.05	≤0.03	≤0.03	/	≥99.5
1060	≤0.05	≤0.25	≤0.35	≤0.03	≤0.03	≤0.05	≤0.03	≤0.03	/	≥99.6
1070	≤0.04	≤0.2	≤0.25	≤0.03	≤0.03	≤0.04	≤0.03	≤0.03	/	≥99.7
1100	0.05-0.2	（Si+Fe）≤0.95		≤0.05	≤0.05	≤0.1	≤0.05	≤0.05	/	≥99.0
Aluminum Bar Mechanical Properties
Grades	RmMPa		Rp0,2MPa			A50 mm% min.			HBW Typischer Wert
1050	≥60		≥20			≥23%			≥20
1060	≥60		≥15			≥22%			/
1070	≥60		≥23			≥23%			≥18
1100	≥75		≥20			≥18%			≥20

Spot Regular Status:
O、F、H111、H112

Spot Routine Implementation Standards:
Aluminium and aluminium alloys – Chemical compositionand form of wrought productsPart 3: Chemical compositionEnglish version of DIN EN 573-3
Aluminium and aluminium alloys-Cold drawn rod/bar and tube Part 2 Mechanical properties:DIN EN 754-2-2008
Aluminium and aluminium alloys-Extruded rod/bar,tube and profiles Part 2:Mechanical properties:DIN EN_755-2-2008
Aluminium and aluminium alloyextruded rods/bars, round bars Chemical composition+Mechanical properties：ASTM B211M-2001
Aluminium and aluminium alloy extruded rods/bars,tubes and profles Chemicalcomposition+Mechanical properties：ASTM B221
Wrought Aluminium and aluminium alloyextruded profles Chemical composition+Mechanical properties:JIS H4100-2006
Wrought Aluminium and aluminium alloy extruded rods/bars Chemical composition+Mechanical properties:JIS H4040-2006
Aluminium and aluminium alloy extruded rods/bars Chemical composition：GB/T3190-2008
Aluminium and aluminium alloy extruded rods/bars Mechanical properties：GB/T3191-2010
