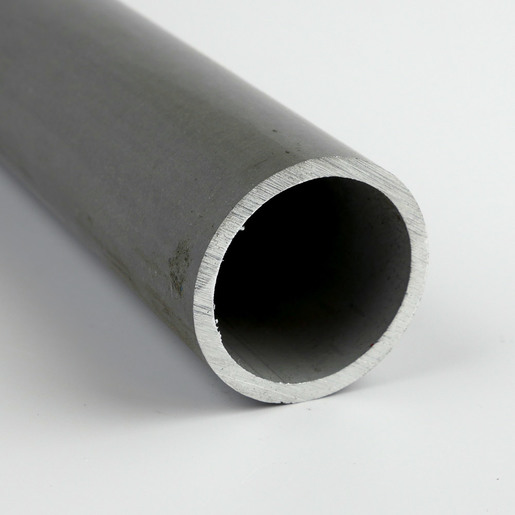

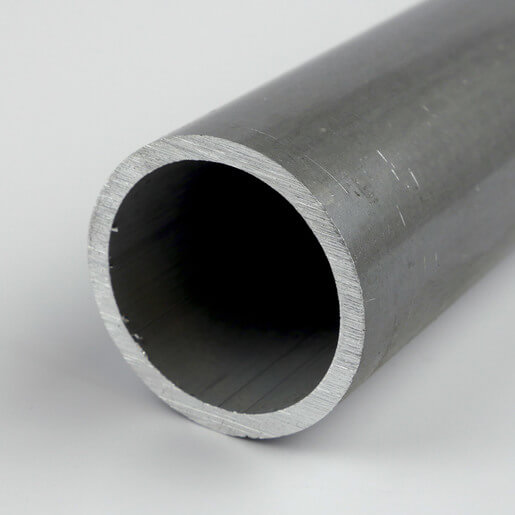

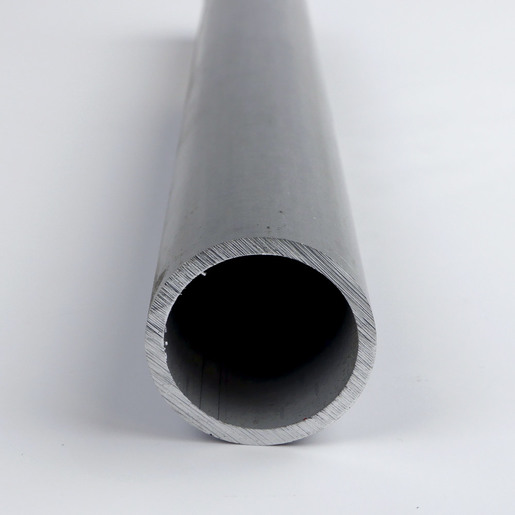

2024 t3 aluminum tube

Aluminum alloy is the material of choice for light aircraft and spacecraft, and aluminum is widely used in the aerospace industry.

Zhenhan supplies all aviation-grade alloys, such as 2024, 3003, 5052, 6061, 7050, 7075, and 7475.

2024 aluminum sheet is the most common high-strength aluminum alloy and is an aviation-grade material. Although its corrosion resistance is lower than 6061, its fatigue resistance is excellent. Most aircraft use aluminum alloy sheets for fuselages, wing skins, aircraft structures, and fairings. Due to its bright surface, it is also very suitable for repair and restoration.

Fields marked with * must be filled in. Please fill in your commonly used email address or WhatsApp phone number for us to contact you. We value privacy and will not disclose any of your information to any third party.

Product Details

Aluminum Chemical Composition
Grades	Cu	Si	Fe	Mn	Mg	Zn	Cr	Ti	Pb+Bi	Al
1050	≤0.05	≤0.25	≤0.4	≤0.05	≤0.05	≤0.05	≤0.03	≤0.03	/	≥99.5
1060	≤0.05	≤0.25	≤0.35	≤0.03	≤0.03	≤0.05	≤0.03	≤0.03	/	≥99.6
1070	≤0.04	≤0.2	≤0.25	≤0.03	≤0.03	≤0.04	≤0.03	≤0.03	/	≥99.7
1100	0.05-0.2	（Si+Fe）≤0.95		≤0.05	≤0.05	≤0.1	≤0.05	≤0.05	/	≥99.0
Aluminum Bar Mechanical Properties
Grades	RmMPa		Rp0,2MPa			A50 mm% min.			HBW Typischer Wert
1050	≥60		≥20			≥23%			≥20
1060	≥60		≥15			≥22%			/
1070	≥60		≥23			≥23%			≥18
1100	≥75		≥20			≥18%			≥20
Spot Regular Status
O、F、H111、H112
Spot Routine Implementation Standards
Aluminium and aluminium alloys – Chemical compositionand form of wrought productsPart 3: Chemical compositionEnglish version of DIN EN 573-3
Aluminium and aluminium alloys-Cold drawn rod/bar and tube Part 2 Mechanical properties:DIN EN 754-2-2008
Aluminium and aluminium alloys-Extruded rod/bar,tube and profiles Part 2:Mechanical properties:DIN EN_755-2-2008
Aluminium and aluminium alloyextruded rods/bars, round bars Chemical composition+Mechanical properties：ASTM B211M-2001
Aluminium and aluminium alloy extruded rods/bars,tubes and profles Chemicalcomposition+Mechanical properties：ASTM B221
Wrought Aluminium and aluminium alloyextruded profles Chemical composition+Mechanical properties:JIS H4100-2006
Wrought Aluminium and aluminium alloy extruded rods/bars Chemical composition+Mechanical properties:JIS H4040-2006
Aluminium and aluminium alloy extruded rods/bars Chemical composition：GB/T3190-2008
Aluminium and aluminium alloy extruded rods/bars Mechanical properties：GB/T3191-2010
