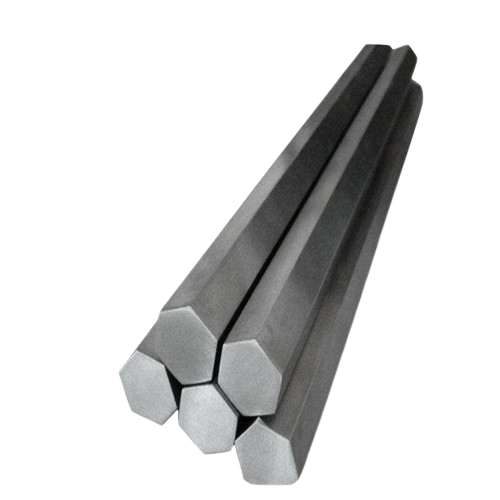

3003-Aluminum rods, aluminum tubes, aluminum profiles

3003-Aluminum rods, aluminum tubes, aluminum profiles - Image 2

3003-Aluminum rods, aluminum tubes, aluminum profiles

Zhenhan supplies 3003 aluminum, supports bulk purchase, and can be customized according to customer needs.

Fields marked with * must be filled in. Please fill in your commonly used email address or WhatsApp phone number for us to contact you. We value privacy and will not disclose any of your information to any third party.

Product Details

3003Aluminum Alloy Chemical Composition
Cu	Si	Fe	Mn	Mg	Zn	Cr	Ti	Pb+Bi	Al
0.05-0.2	≤0.6	≤0.7	1.0-1.5	≤0.05	≤0.1	≤0.05	≤0.05	/	Remainder
3003Aluminum Rod Mechanical Properties
Werkstoff-zustand	Rm/MPa			Rp0,2/MPa			A50 mm/%/min.			HBW/ Typischer Wert
O/H111	95-135			≥35			≥20%			≥29
F/H112	≥95			≥35			≥20%			≥30
H14	130-165			≥110			≥4%			≥40
H16	160-195			≥130			≥3%			≥47
H18	≥180			≥145			≥2%			≥55
3003Aluminum Tube Mechanical Properties
Werkstoff-zustand	Rm/MPa			Rp0,2/MPa			A50 mm/%/min.			HBW/ Typischer Wert
O/H111	95-130			≤35			≥20%			≥29
F/H112	≥95			≥35			≥20%			≥30
H11	105-140			≥55			≥16%			≥32
H12	115-150			≥75			≥12%			≥35
H13	125-160			≥95			≥8%			≥38
H14	130-165			≥110			≥4%			≥40
H15	145-180			≥120			≥4%			≥44
H16	160-195			≥130			≥3%			≥47
H17	170-205			≥140			≥2%			≥51
H18	≥180			≥145			≥2%			≥55
Aluminium and aluminium alloys – Chemical compositionand form of wrought productsPart 3: Chemical compositionEnglish version of DIN EN 573-3
Aluminium and aluminium alloys-Cold drawn rod/bar and tube Part 2 Mechanical properties:DIN EN 754-2-2008
Aluminium and aluminium alloys-Extruded rod/bar,tube and profiles Part 2:Mechanical properties:DIN EN_755-2-2008
Aluminium and aluminium alloyextruded rods/bars, round bars Chemical composition+Mechanical properties：ASTM B211M-2001
Aluminium and aluminium alloy extruded rods/bars,tubes and profles Chemicalcomposition+Mechanical properties：ASTM B221
Wrought Aluminium and aluminium alloyextruded profles Chemical composition+Mechanical properties:JIS H4100-2006
Wrought Aluminium and aluminium alloy extruded rods/bars Chemical composition+Mechanical properties:JIS H4040-2006
Aluminium and aluminium alloy extruded rods/bars Chemical composition：GB/T3190-2008
Aluminium and aluminium alloy extruded rods/bars Mechanical properties：GB/T3191-2010
3003Applications of Aluminum Materials
This series boasts excellent molding performance, corrosion resistance, and weldability, along with high strength. Applications include: new energy vehicle components and other fields.
