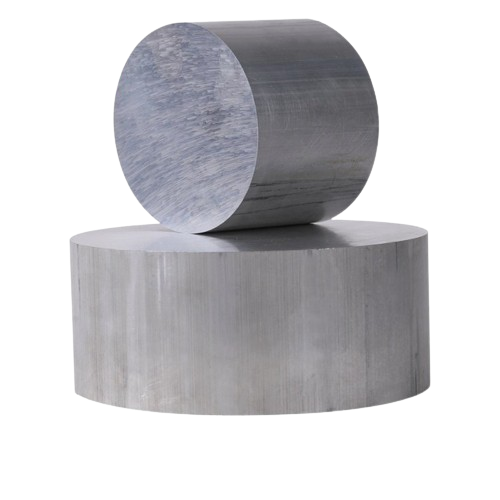

5083 aluminum rods, aluminum tubes, aluminum profiles
Zhenhan supplies high-quality 5083 aluminum tube, supports large-volume purchases, and offers flexible customization to meet your diverse needs. With reliable quality and fast delivery, we are your ideal aluminum partner!
Fields marked with * must be filled in. Please fill in your commonly used email address or WhatsApp phone number for us to contact you. We value privacy and will not disclose any of your information to any third party.
Product Details
| 5083Aluminum Alloy Chemical Composition | |||||||||
| Cu | Si | Fe | Mn | Mg | Zn | Cr | Ti | Pb+Bi | Al |
| ≤0.1 | ≤0.4 | ≤0.4 | 0.4-1.0 | 4.0-4.9 | ≤0.2 | 0.05-0.25 | ≤0.15 | / | Remainder |
| 5083Aluminum Rod Mechanical Properties | ||||
| Werkstoff-zustand | Rm MPa | Rp0,2 MPa | A50 mm % min. | HBW Typischer Wert |
| F | ≥260 | ≥100 | ≥10% | ≥70 |
| O/H111 | 270-350 | ≥110 | ≥14% | ≥70 |
| H112 | ≥270 | ≥125 | ≥10% | ≥70 |
| H12/H22/H32 | ≥280 | ≥200 | ≥4% | ≥90 |
| 5083Aluminum Tube Mechanical Properties | |||||||||
| Werkstoff-zustand | Rm MPa | Rp0,2 MPa | A50 mm % min. | HBW Typischer Wert | |||||
| F | ≥260 | ≥100 | ≥10% | ≥70 | |||||
| O/H111 | 270-350 | ≥110 | ≥14% | ≥70 | |||||
| H112 | ≥270 | ≥125 | ≥10% | ≥70 | |||||
| H12/H22/H32 | ≥280 | ≥200 | ≥4% | ≥90 | |||||
| H14/H24/H34 | ≥300 | ≥235 | ≥3% | ≥100 | |||||
| Aluminium and aluminium alloys – Chemical compositionand form of wrought productsPart 3: Chemical compositionEnglish version of DIN EN 573-3 | |||||||||
| Aluminium and aluminium alloys-Cold drawn rod/bar and tube Part 2 Mechanical properties:DIN EN 754-2-2008 | |||||||||
| Aluminium and aluminium alloys-Extruded rod/bar,tube and profiles Part 2:Mechanical properties: DIN EN_755-2-2008 | |||||||||
| Aluminium and aluminium alloyextruded rods/bars, round bars Chemical composition+Mechanical properties: ASTM B21M-20o1 | |||||||||
| Aluminium and aluminium alloy extruded rods/bars,tubes and profles Chemicalcomposition+ Mechanical properties: ASTM B221 | |||||||||
| Wrought Aluminium and aluminium alloyextruded profles Chemical composition+ Mechanical properties:JIS H41o0-20o6 | |||||||||
| Wrought Aluminiumn and aluminium alloy extruded rods/bars Chemical composition+ Mechanical properties:JIS H4040-2006 | |||||||||
| Aluminium and aluminium alloy extruded rods/bars Chemical composition: GB/T3190-20o8 | |||||||||
| Aluminium and aluminium alloy extruded rods/bars Mechanical properties: GB/T3191-201o | |||||||||
| 5083Applications of Aluminum Materials | |||||||||
| This series boasts advantages such as corrosion resistance, weldability, surface treatment properties, good plasticity, and low density; it is widely used in optical instruments, rivets, semiconductors, optical lenses, applications requiring high corrosion resistance and machinability, welded structures, forged parts, and load-bearing components for welded containers, among other fields. |
